愛普生是日本有名的頻率元件制造商,專業生產銷售石英晶振,石英晶體振蕩器,貼片晶振,晶體濾波器等.發展至今已是國際有名的晶體元件制造商,致力于為客戶提供高性能,高可靠,高品質晶振產品。

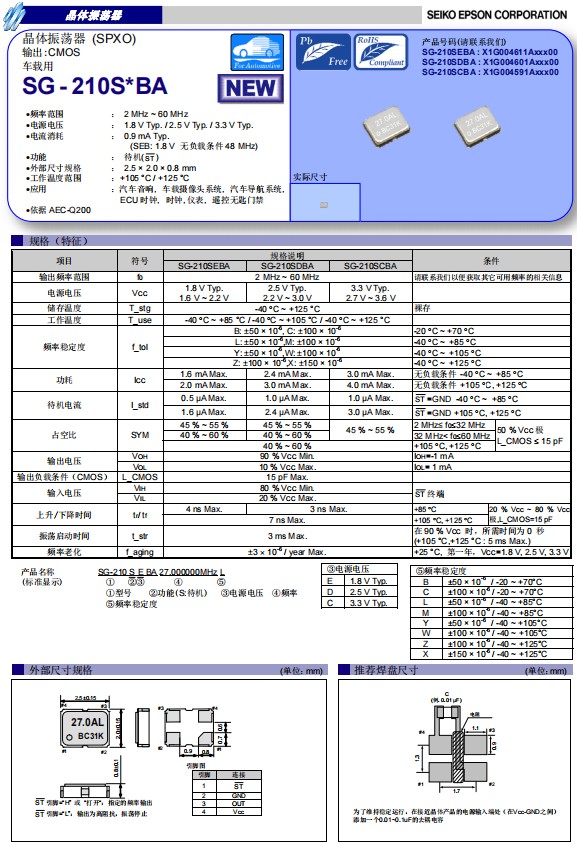

愛普生晶振SG-210SCBA，是一款小體積晶振尺寸2.5x2.0mm晶體振蕩器，CMOS輸出，四腳貼片晶振，頻率2MHz至60MHz，石英晶體振蕩器，具有超小型，輕薄型，耐熱及耐環境特性，被廣泛用于汽車電子晶振，車載攝像頭系統，GPS，汽車音響，儀表，移動通信等.
汽車用晶體振蕩器SG-210SCBA小體積尺寸2520mm有源晶振,X1G004591A04000,汽車電子晶振

Product Number	Model	貼片晶振	LxWxH	Output Wave	Supply Voltage
X1G004591A00100	SG-210SCBA	27.000000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A00200	SG-210SCBA	49.090000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A00300	SG-210SCBA	40.000000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A00400	SG-210SCBA	8.000000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A00600	SG-210SCBA	37.007000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A00700	SG-210SCBA	27.000000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A00900	SG-210SCBA	20.000000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A01000	SG-210SCBA	33.333000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A01300	SG-210SCBA	25.000000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A01700	SG-210SCBA	4.000000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A02000	SG-210SCBA	20.000000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V

X1G004591A02100	SG-210SCBA	33.333300 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A02300	SG-210SCBA	16.000000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A02400	SG-210SCBA	25.000000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A02500	SG-210SCBA	25.000000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A02700	SG-210SCBA	33.300000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A02800	SG-210SCBA	48.000000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A03100	SG-210SCBA	25.000000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A03300	SG-210SCBA	10.000000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A03600	SG-210SCBA	33.333300 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A03700	SG-210SCBA	14.745600 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A03800	SG-210SCBA	37.007000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V
X1G004591A04000	SG-210SCBA	24.000000 MHz	2.50x2.00x0.90mm	CMOS	2.700 to 3.600 V

汽車用晶體振蕩器SG-210SCBA小體積尺寸2520mm有源晶振,X1G004591A04000,汽車電子晶振
小型貼片石英晶振主要采用了，先進的晶片的拋光工藝技術，是晶體行業中石英晶片研磨技術中表面處理的最高技術，最終使晶片表面更光潔，平行度及平面度更好，大大的降低諧振電阻，使精度得到了很大的提升。改變了傳統的生產工藝，使產品在各項參數得到了很大的改良,外觀尺寸具有薄型表面貼片型石英晶體振蕩器,特別適用于有小型化要求的市場領域,比如智能手機,無線藍牙,平板電腦等電子數碼產品。
