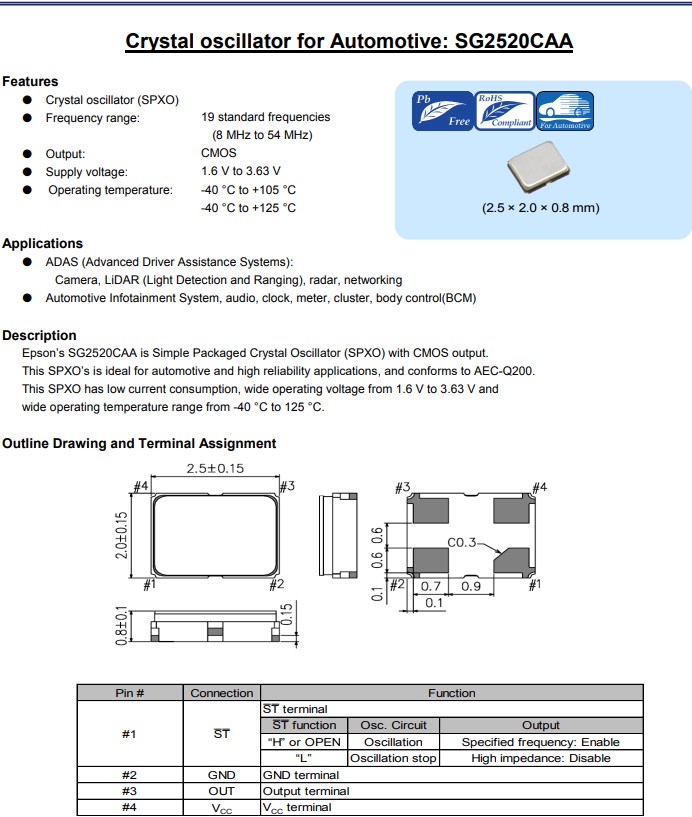

愛普生晶振SG2520CAA是一款具有CMOS輸出的簡單封裝石英晶體振蕩器(SPXO)，小體積尺寸2.5x2.0mm四腳貼片晶振，有源晶振，頻率范圍:8MHz至54MHz，1.6V至3.63V的寬工作電壓以及寬工作溫度范圍-40℃至+105℃/+125℃，該產品具有超小型，輕薄型，低電流消耗，耐高溫晶振，耐熱、耐振、耐沖擊等優良的耐環境特性，滿足無鉛焊接的高溫回流溫度曲線要求，符合AEC-Q200標準，非常適用于汽車和高可靠性應用，ADAS(高級駕駛輔助系統): 攝像頭、激光雷達(光探測和測距)、雷達、網絡，汽車信息娛樂系統、音頻、時鐘、儀表、組合儀表、車身控制(BCM)等。
SG2520CAA耐高溫晶振X1G005951001316適用于汽車攝像頭應用,X1G005951002316,小體積晶振

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓	工作溫度
X1G005951000416	SG2520CAA	27.000000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005951000516	SG2520CAA	27.000000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005951000616	SG2520CAA	12.288000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005951000716	SG2520CAA	24.576000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005951000816	SG2520CAA	25.000000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005951000916	SG2520CAA	25.000000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005951001016	SG2520CAA	20.000000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005951001116	SG2520CAA	20.000000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005951001216	SG2520CAA	24.000000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005951001316	SG2520CAA	24.000000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005951001416	SG2520CAA	11.289600MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005951001516	SG2520CAA	8.000000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 105°C

X1G005951001616	SG2520CAA	10.000000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005951001716	SG2520CAA	12.000000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005951001816	SG2520CAA	14.745600MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005951001916	SG2520CAA	16.666600MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005951002016	SG2520CAA	22.579200MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005951002116	SG2520CAA	33.000000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005951002216	SG2520CAA	33.333300MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005951002316	SG2520CAA	40.000000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005951002416	SG2520CAA	48.000000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005951002516	SG2520CAA	50.000000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005951002616	SG2520CAA	50.000000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005951002716	SG2520CAA	54.000000MHz	2.50x2.00x0.80mm	CMOS	1.600 to 3.630V	-40 to 105°C

SG2520CAA耐高溫晶振X1G005951001316適用于汽車攝像頭應用,X1G005951002316,小體積晶振
近幾年互聯網高速發展，隨著5G時代的到來，智能汽車的發展也越發的迅速。汽車電子對晶振的要求比消費類的科技數碼產品高的多，特別是耐高溫這一塊，汽車電子中的晶振最好能在高溫和低溫狀態下正常工作。
